ShockLi Battery

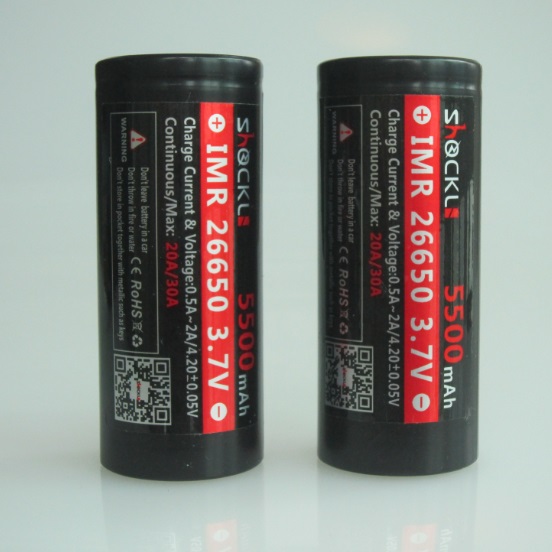

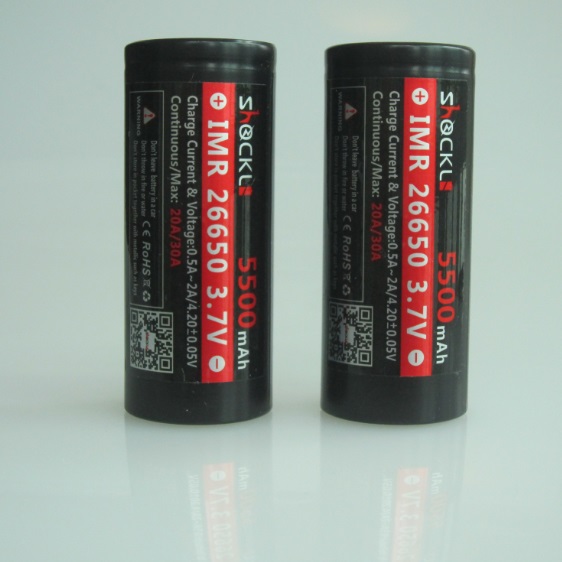

Shockli 26650 5500mah IMR 30A discharge -Flat top



Tpye of Battery

Shockli 26650 5500mah IMR battery

Size(mm)

26.7±0.2mm(Diameter) x 65.2±0.3 mm(Length)

Weight(g)

95±2g

Nominal Voltage

3.7V

Nominal  Capacity

5500mah (1A  Discharge)

Discharge Cut-off voltage

2.75 V

Standard Charge

1.0 A /4.2V±0.05V (Recommend 1.0A-2.0A)

Maximum charge current

4A

Continuous

Discharge Current

20A

MAX

Discharge Current

30A

Initial Impedance

20 mW

Cycle Life

500times: discharging capacity≥60%

Charging Time

Standard charge : 4hours

Rapid charge : 2hours

Operating environment

Charging, 0°C ~ 45°C

Discharging, -20°C~60°C

Storage environment

Temp(-20°c -35°c)  / Humidity (65±20%)

Minimum Order Quantity

50 Piece

Application

Electronic cigarette , Flashlight, Electric tool



Price: US $
Product feedback

Product introduction




Tpye of Battery

Shockli 26650 5500mah IMR battery

Size(mm)

26.7±0.2mm(Diameter) x 65.2±0.3 mm(Length)

Weight(g)

95±2g

Nominal Voltage

3.7V

Nominal  Capacity

5500mah (1A  Discharge)

Discharge Cut-off voltage

2.75 V

Standard Charge

1.0 A /4.2V±0.05V (Recommend 1.0A-2.0A)

Maximum charge current

4A

Continuous

Discharge Current

20A

MAX

Discharge Current

30A

Initial Impedance

20 mW

Cycle Life

500times: discharging capacity≥60%

Charging Time

Standard charge : 4hours

Rapid charge : 2hours

Operating environment

Charging, 0°C ~ 45°C

Discharging, -20°C~60°C

Storage environment

Temp(-20°c -35°c)  / Humidity (65±20%)

Minimum Order Quantity

50 Piece

Application

Electronic cigarette , Flashlight, Electric tool
