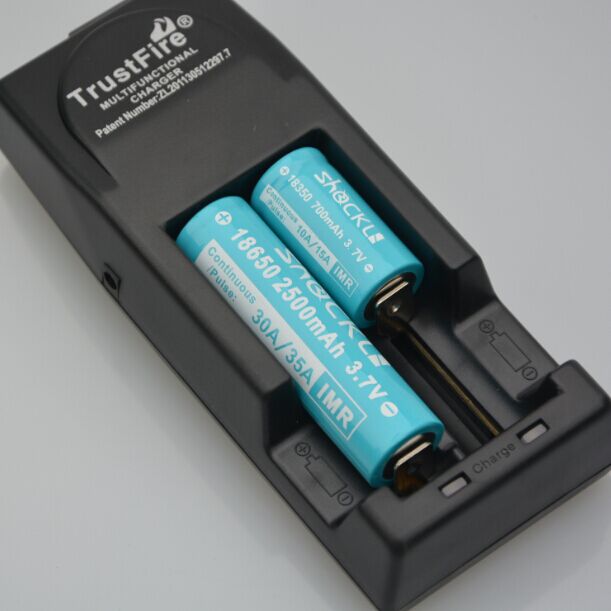

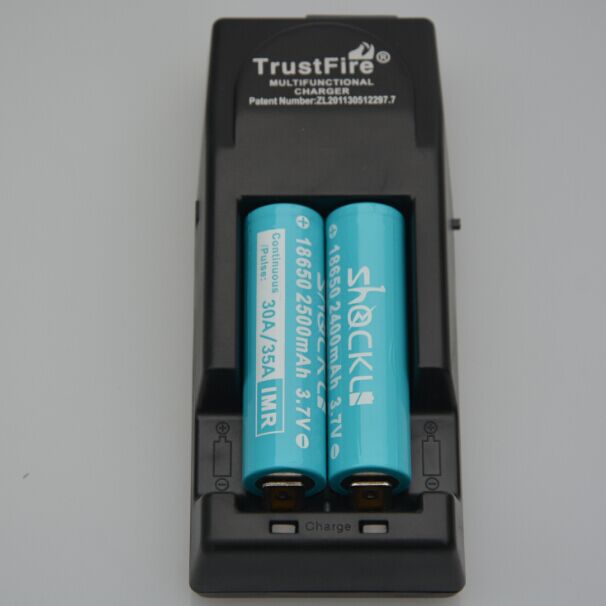

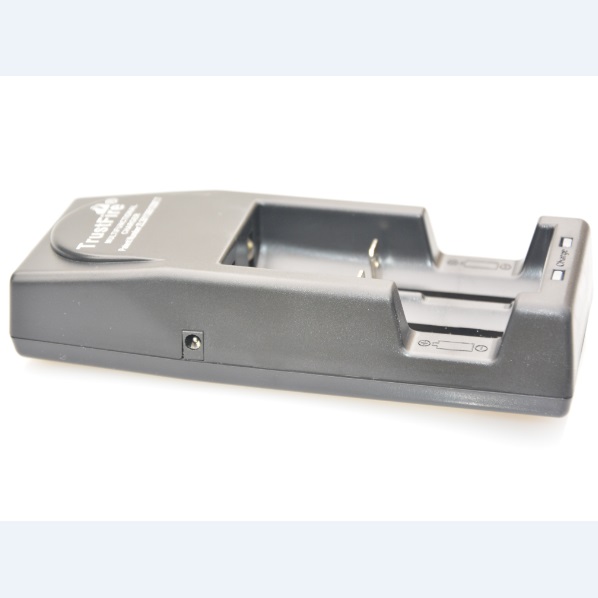

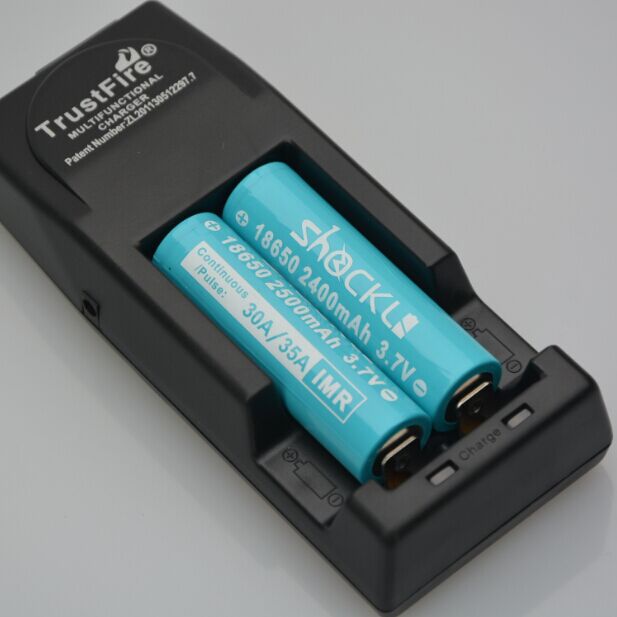

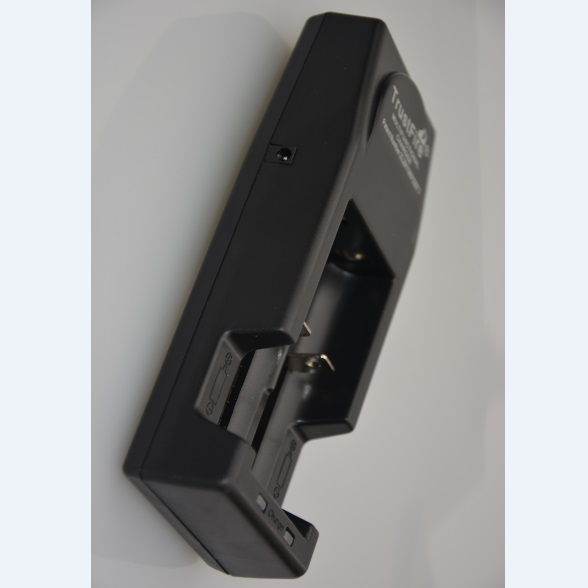

TrustfireTR-001 for IMR Li-ion Li-FePO4 18650 18500 18350 16340 Battery Charger
Price: US $4.2
Product feedback

Product introduction



Model Number

Trustfire  001

Rechargeability

Li-ion /IMR 3.7V  10440, 14500, 16340 (CR123A), 17670, 18500, 18650 batteries

Li-FePO4(3V)

Weight(g)

158

Input 1

AC100-240V 50/60Hz

Input 2

DC12v (DC size 3.5mm*1.35)

Output

Li-ion /IMR 4.2V ± 1% ;500mA*2

Li-FePO4 3.6V ± 1%,2*500mA

Cut-off Voltage

4.2V ± 1% / 3.6 ± 1%

Charge time

4-6 h

Package include

1x Charger , 1x Power Cable

Display

2  LED display


Features:

1). Compatible Protected or non-Protected.

2). End of charge detection assures the safe and full charging.

3). Short-circuit and over voltage cut off.

4). Over voltage or temperature cut off protection

5). Complete 2 channel with individual LED charging indication.

6). add one 3.0V choice switch, if you want to charge 3.3V Li-FePO4 battery, you can turn the switch on the 3.0V side.





LED indicate:

LED display  RED ----------------------------------- Battery Charging

LED display  GREEN --------------------------------- Charge  complete
