Tpye of Battery

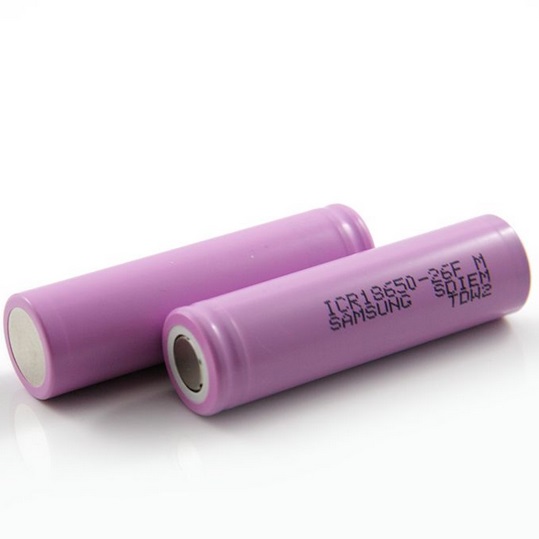

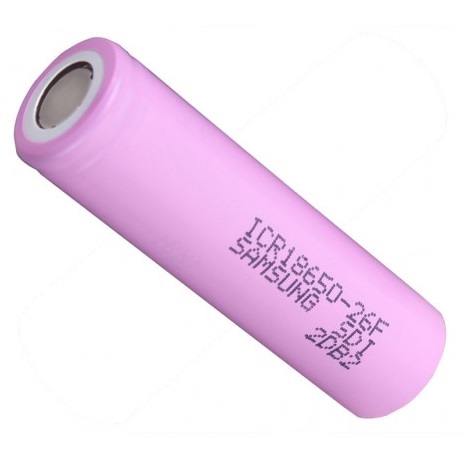

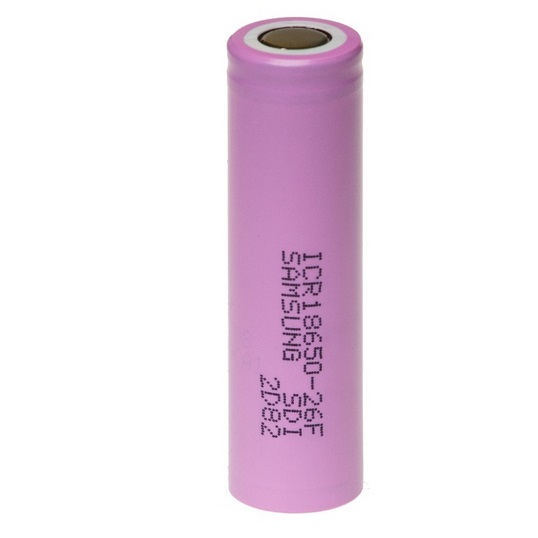

ICR18650-26F

Size(mm)

18.4mm(Diameter) x 65mm(Length)

Weight(g)

47±1.5g

Nominal  Capacity

2600mah(0.2 C Discharge)

Nominal Voltage

3.7V

Discharge Cut-off voltage

2.75 V

Charging Volt

4.2V±0.05V

charging  current (Std.)

1.3 A

Maximum charge current

2.6A

Continuous maximum

 Discharge Current

5.2A

Internal Resistance

Less than 100mΩ

Cycle Life

300times

Charging Time

Standard charge : 3 hours

Rapid charge : 2.5 hours

Operating environment

Charging, 0°C ~ 45°C ;  65±20%RH

Discharging, -20°C~60°C ;  65±20%RH

Storage environment

Temp(-20°c -35°c)  / Relative humidity (45-75%)

Minimum Order Quantity

10 Piece
