Tpye of Battery

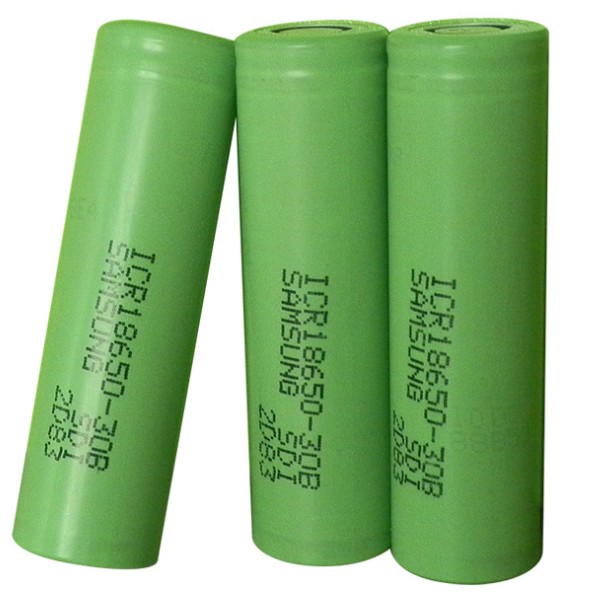

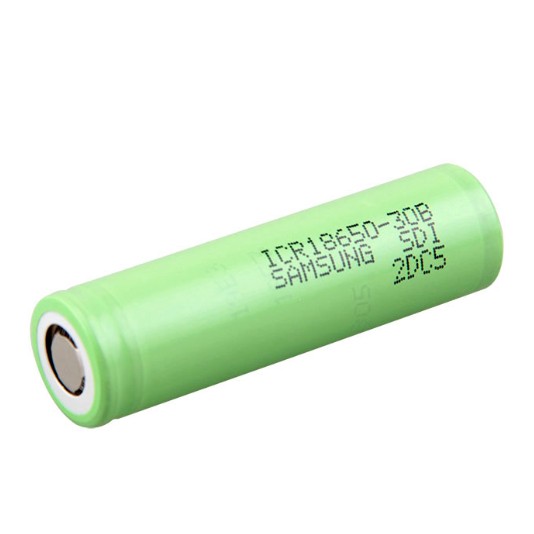

ICR18650-30B

Size(mm)

18.4mm(Diameter) x 65mm(Length)

Weight(g)

48±1 g

Nominal  Capacity

2950mah(0.2 C Discharge)

Nominal Voltage

3.78V

Discharge Cut-off voltage

2.75 V

Charging Volt

4.35V±0.03V

charging  current (Std.)

1.5 A

Maximum charge current

3A

Continuous maximum

 Discharge Current

5.9A

Internal Resistance

Less than 100mΩ

Cycle Life

More than 300times

Charging Time

Standard charge : 3 hours

Rapid charge : 2.5 hours

Operating environment

Charging, 0°C ~ 45°C ;  65±20%RH

Discharging, -20°C~60°C ;  65±20%RH

Storage environment

Temp(-20°c -35°c)  / Relative humidity (45-75%)

Minimum Order Quantity

10 Piece
