Tpye of Battery

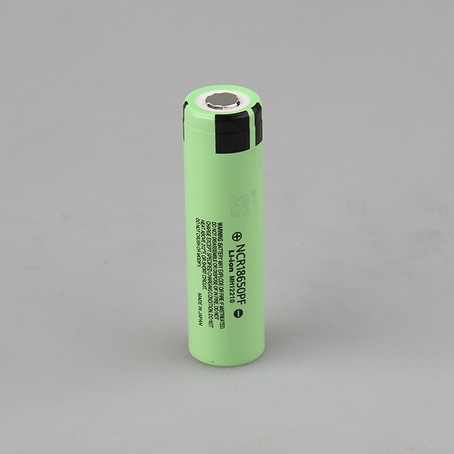

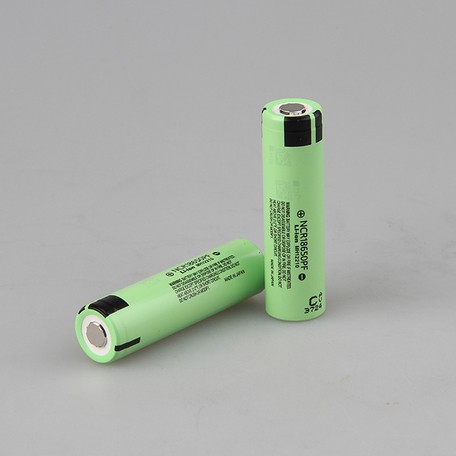

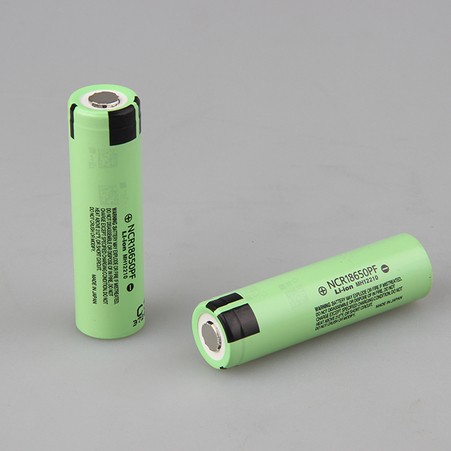

NCR18650PF

Size(mm)

18.6mm(Diameter) x 65.2mm(Length)

Voltage

3.6v

Capacity

Typical Capacity: 2900mAh, Minimum Capacity: 2850mAh

Discharging End Voltage

2.5V

Continuous Discharging

Current

10A

Pulse Discharging

Current

18A

charging  current (Std.)

1.35A

Charging Volt

4.2V

charging  time

4 hours

Internal Resistance

Less than 35mΩ

Positive Shape

flat

Protection

Without protection board

Weight(g)

47g

Rechargeable times

300times Discharge and Charger cycles ,the capacity≥70%

Operating environment

Charging, 0°C ~ 45°C ;  65±20%RH

Discharging, -20°C~60°C ;  65±20%RH

Storage environment

Temp(15-35°c)  / Relative humidity (45-75%)

Minimum Order Quantity

10 Piece

Application

electrical tools ，flashlight，electric Toys
